I've completed the rim on my 00-20something 12-fretter deep body and am working on the back plate. The back and sides are EIR and the top is Lutz. This is from a less well serviced kit from John Hall with very nice wood and is my stepping stone to a scratch build with the next one.

I'v used a tip from Hesh about flattening the upper bout on the top after final profiling of the rim and linings. This is my first build with a decorative back strip and I was a bit apprehensive about dealing with two joints rather than one.

I joined the edges with an old Stanley No. 5 that had spent an afternoon with a Veritas Mk II honing guide. I was pleasently amazed with the results and have a close up after sanding to 220. Sharp planes are really cool tools!

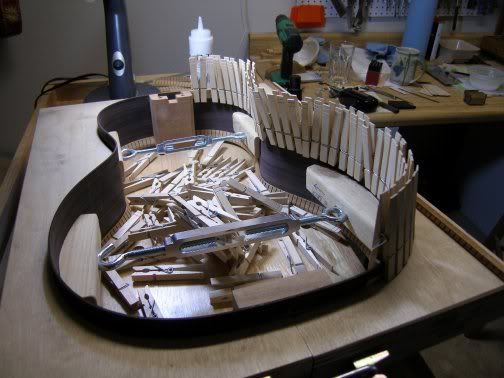

Installing Linings:

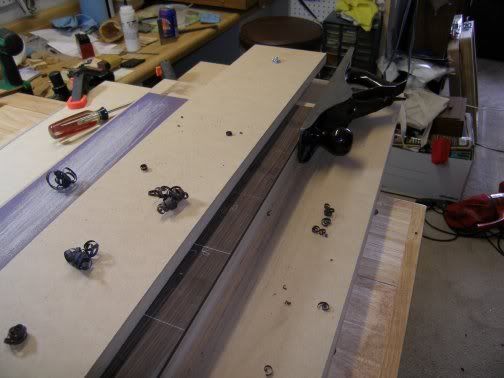

Shooting edges:


Edge join detail:

_________________
Jim Howell
Charlotte, NC

Sweet! Love the curls on the shooting board! The back will look nice.

Thanks for the shot of the turnbuckles inside the form. from that angle I know now what I need to do to reproduce my own set!

Look out, Jim! It looks to me like you're well on your way to building a good guitar! Then there's no turning back!!!
